产品描述

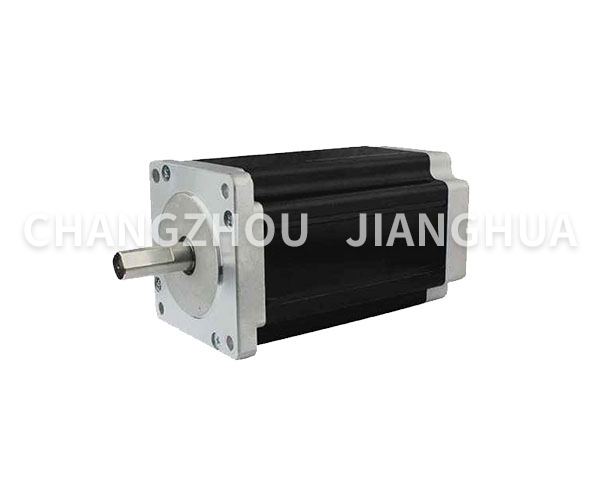

60BYGH系列步进电机参数NEMA23seriessteppermotorparameterlist
步距角 Stepangle | 步距角精度 StepAngleAccuracy | 电阻精度 Resistance Accuracy | 电感精度 Inductance Accuracy | 温升 Temperature Rise | 环境温度 Ambient Temperature | 绝缘电阻 Insulation Resistance | 介质强度 Dielectric Strength | 径向跳动 ShaftRadial Play | 轴向间隙 ShaftAxial play |
1.8 | ±5% | ±10% | ±20% | 80°C Max | -20°C～ ＋50°C | 100MΩ MIN., 500VDC | 500VACforoneminute | 0.02Max (450g-load) | 0.08Max (450g-load) |
型号 ModelNo. | 步距角Stepangle | 相数 No.phase | 电压 Voltage | 电流 Current | 电感 Inductance |
电阻 Resistance
| 静转矩 HoldingTorque | 转动惯量 RotorInertia | 重量 Weight | 机身长 Length | 引线数 LeadwireNumber |
( °) | V | A | mh±20% | Ω±10% | kg.cm | g.cm2 | kg | mm | NO. | ||
60BYHG56-3004 | 1.8 | 2 | 3.6 | 3 | 2 | 1.2 | 11 | 300 | 0.77 | 56 | 4 |
60BYHG67-2004 | 1.8 | 2 | 2.4 | 2 | 4.6 | 1.2 | 15 | 590 | 1.2 | 67 | 4 |
60BYHG67-2804 | 1.8 | 2 | 3.36 | 2.8 | 4.6 | 1.2 | 22 | 590 | 1.2 | 67 | 4 |
60BYHG67-3004 | 1.8 | 2 | 3.6 | 3 | 4.6 | 1.2 | 15 | 590 | 1.2 | 67 | 4 |
60BYHG88-0804 | 1.8 | 2 | 16 | 0.8 | 100 | 20 | 28 | 860 | 1.4 | 88 | 4 |
60BYHG88-1504 | 1.8 | 2 | 6 | 1.5 | 30 | 6 | 28 | 860 | 1.4 | 88 | 4 |
60BYHG88-3004 | 1.8 | 2 | 4.8 | 3 | 8.4 | 1.6 | 35 | 860 | 1.4 | 88 | 4 |
60BYHG88-3008 | 1.8 | 4 | 3.9 | 3 | 3.2 | 1.3 | 22 | 860 | 1.4 | 88 | 8 |
60BYHG88-3504 | 1.8 | 2 | 6 | 3.5 | 3 | 0.6 | 22 | 860 | 1.4 | 88 | 4 |
60BYHG88-3508 | 1.8 | 4 | 4.2 | 3.5 | 3 | 1.1 | 22 | 860 | 1.4 | 88 | 8 |
60BYHG88-4004 | 1.8 | 2 | 2.8 | 4 | 3.5 | 0.7 | 30 | 860 | 1.4 | 88 | 4 |
60BYHG88-4208 | 1.8 | 4 | 3.51 | 4.2 | 1.6 | 0.69 | 22 | 860 | 1.4 | 88 | 8 |
60BYHG100.5-2808 | 1.8 | 4 | 3.92 | 2.8 | 3 | 1.4 | 28 | 1200 | 1.4 | 100.5 | 8 |
60BYHG100.5-3004 | 1.8 | 2 | 3.6 | 3 | 4 | 1 | 35 | 1200 | 1.4 | 100.5 | 4 |
60BYHG100.5-3504 | 1.8 | 2 | 4.2 | 3.5 | 6.4 | 1.2 | 44 | 1200 | 1.4 | 100.5 | 4 |
60BYHG100.5-7004 | 1.8 | 2 | 2.1 | 7 | 1.6 | 0.3 | 44 | 1200 | 1.4 | 100.5 | 4 |
